Description
OPTIMIZED ACCURACY, ULTIMATE RELIABILITY.
Centimeter-Level Positioning

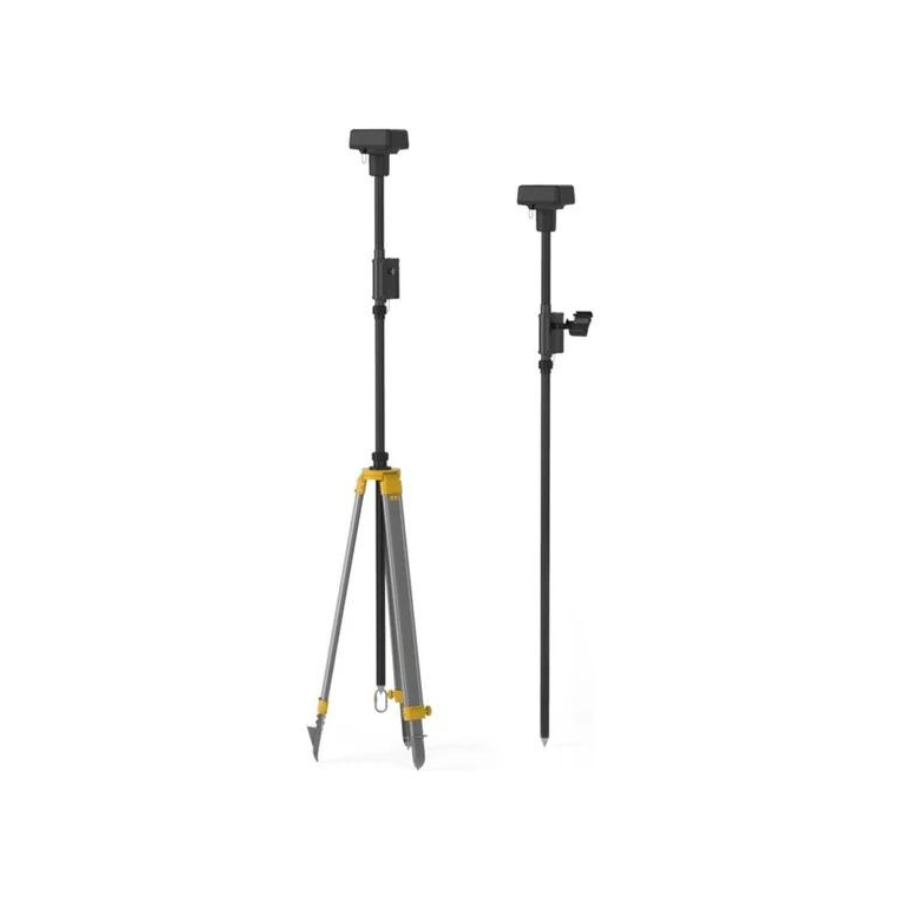

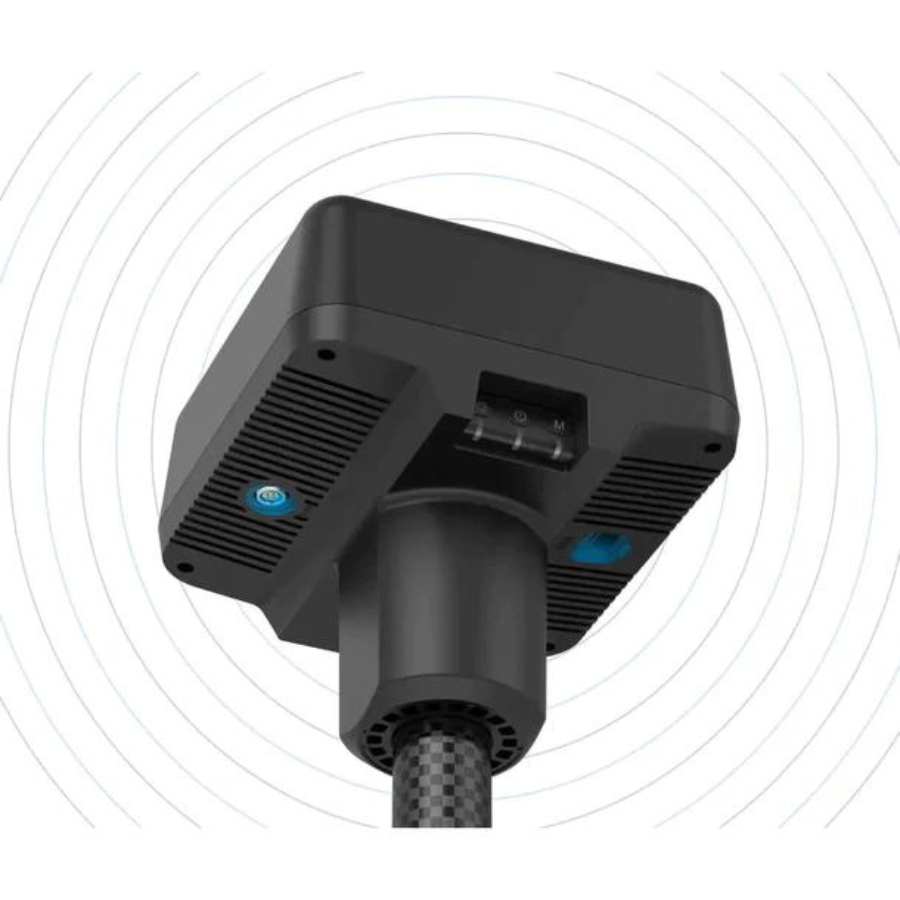

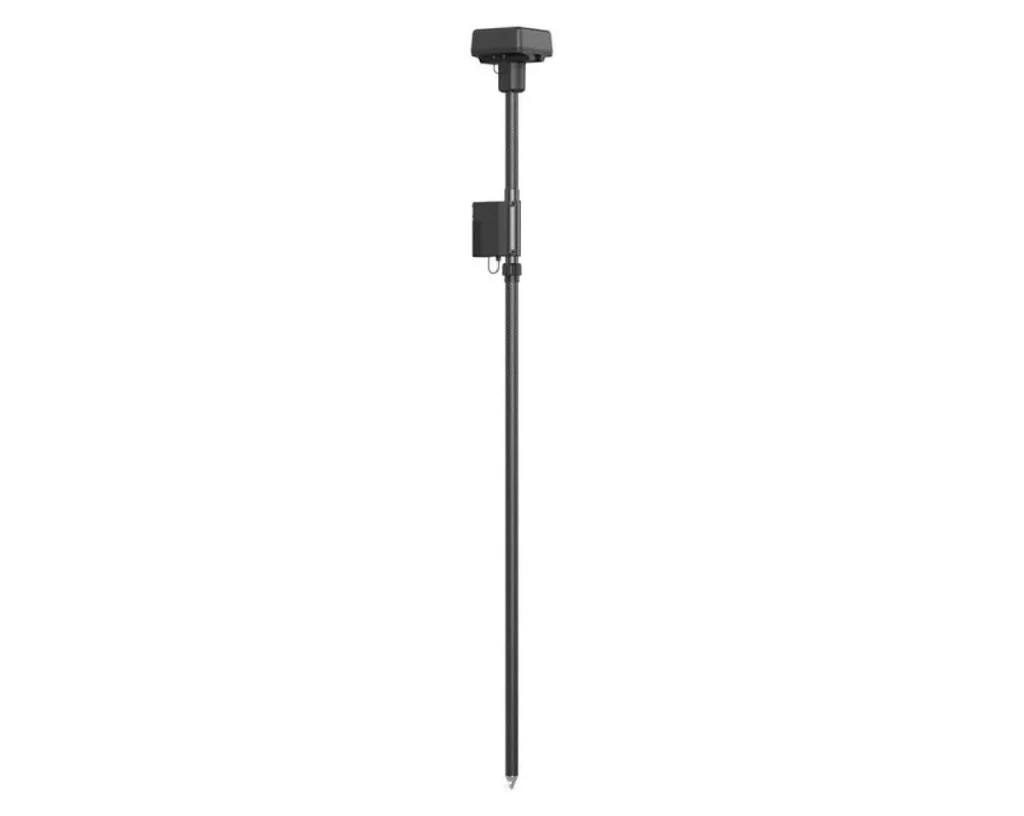

D-RTK 2 Mobile Station fully supports GPS, GLONASS, Beidou, and GALILEO signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones to achieve centimeter-level positioning accuracy. The built-in high-gain antenna offers better signal reception from more satellites even when obstructions are present.
Stay Connected for Any Mission
D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be connected to the D-RTK 2 Mobile Station simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral. When used with the Matrice 300 RTK, it can be connected to multiple aircraft, making coordinated operations involving multiple drones a possibility and significantly improving efficiency.
Durability You Can Trust
Featuring IP65 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.
- Works with Phantom 4 RTK & MG-1P RTK
- Centimeter-Level Mapping Precision
- Accesses GPS, GLONASS, Beidou & GALILEO
- Connects via 4G, OcuSync, Wi-Fi & LAN
- Connect up to 5 Remote Controllers
- Carbon Fiber Body
- IP67-Rated Water & Dust Resistance
- Built-In IMUs Monitor Movement
- IMUs Alert Operators of Abnormalities
Specifications:
GNSS Receiver:
| GNSS Frequency | Simultaneously receive： GPS: L1 C/A, L2, L5 BEIDOU: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B |
|---|---|
| Positioning Accuracy | Single Point Horizontal：1.5 m(RMS) Vertical：3.0 m(RMS) RTK Horizontal：1 cm+ 1 ppm(RMS) Vertical：2 cm+ 1 ppm(RMS) 1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station. |
| Positioning Update Rate | 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz |
| Cold Start | ＜45 s |
| Hot Start | ＜10 s |
| Recapture Time | ＜1 s |
| Initialization Reliability | ＞99.9% |
| Differential Data Format | RTCM 2.X/3.X |
IMU
| Features | Built-in high-precision 6-axis accelerometer D-RTK 2 movement monitoring Sloping measurements Electronic bubble level |
|---|
Physical Characteristics
| Dimensions(D-RTK 2 body with extension rod) | 168 mm×168 mm×1708 mm |
|---|---|
| IP Rating | IP65 |
Communication and Data Storage
| Data Link | OcuSync, Wi-Fi, LAN, 4G |
|---|---|
| Operating Frequency | 2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (China, United States, Australia) |
| EIRP | OcuSync 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm Wi-Fi 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm |

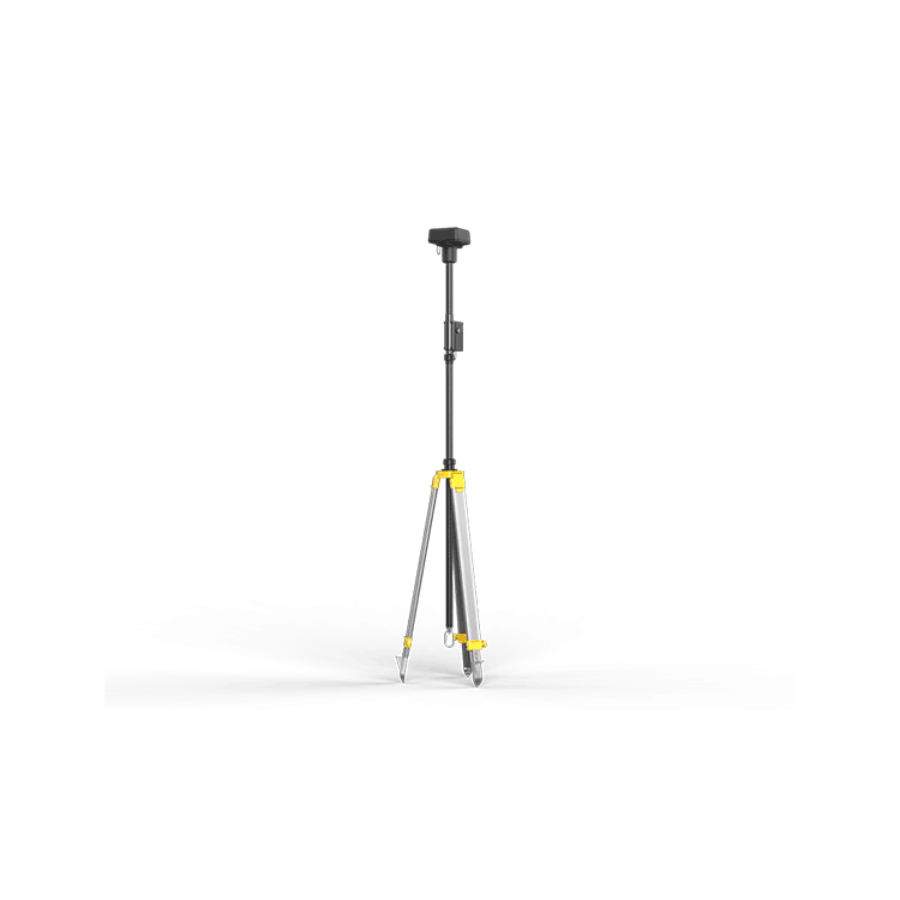

| Communication Distance | Operating Mode 1/3 SRRC/NCC/FCC/MIC/KCC/CE: 2 km (Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)Operating Mode 4 Between the aircraft and mobile station: NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)Operating Mode 5 NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km (Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m) |
| Memory Capacity | 16 GB |
Electrical Characteristics
| Power Consumption | 12 W |
|---|---|
| Power Supply | 16.5 to 58.8VDC |
| Battery | Type：Lithium-ion battery Capacity: 4920 mAh Energy: 37.3 WH |
| Run Time | WB37 battery：＞2 h MG-12000P battery：＞50 h |
Operating Temperature
| Operating Temperature | 4° to 131° F (-20° to 55° C) |
|---|
In The Box
D-RTK 2 Body × 1

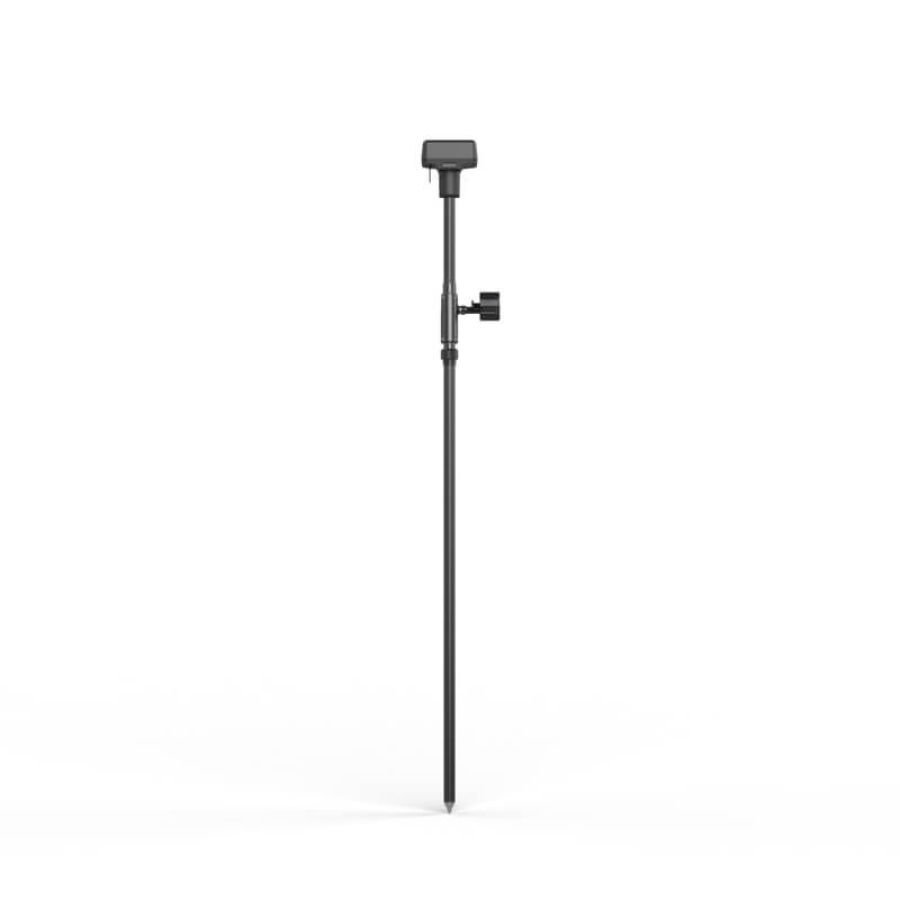

Extension Rod × 1
Charging Hub × 1
AC Power Adapter × 1
Intelligent Battery (WB37) × 2
Battery Cover × 1
AC Power Cable × 1
USB-C Cable × 1
USB-C OTG Cable × 1
Hex Key × 1
